GEMCO new type PTO biomass wood pellet mill is coming!

With the rapid development of economy and the improvement of people’s living standard, energy and environment issues are becoming one of the most challenging issues, developing and utilizing new energy sources is the key to solve the problem. Nowadays, in the context of sustainable economic development, recyclable raw materials become the common demand of energy and machinery industry. Recently, the successful listing of GEMCO 200 wood pellet mill with PTO has attracted the attention of people in the industry.

With the publishment of R type 200 PTO pellet mill, a new model of GEMCO PTO driven pellet mill is entering the market, ZLSP-R-200P. For us, This is another major news after our roller type 200 pellet mill won the title of excellent products in China seventh stoves exposition.

GEMCO is one of the earlier company dedicating to biomass densification molding technology research in China. According to the requirements of foreign customers, roller type 200 PTO pellet mill is a kind of pellet mill which is improved by roller type 200 pellet mill, in order to suitable for those pellet mill power by tractor in field.

Why choose PTO pellet mill?

It is understood that GEMCO pellet press adopts reducer structure, compared with the bevel gear structure pellet mill, it has the advantages of low noise, long service life, large integral strength, reasonable structure, large carrying capacity, high reliability, and it can rotate in both positive and negative directions. Thus it is suitable for continuous operation, such as continuous production line, industrial production and so on. Compared with die type pellet mill, the movable roller of roller type pellet mill is more conducive to the compression of materials, and can drive the materials to move, promoted the mixing of materials.

Advantages of PTO pellet mill

• The big diameter roller shaft can bear the reaction force of hard material such as hardwood;
• The lower molding speed reduces the sensitivity to the material and has better adaptability to different materials;
• Out roller type PTO pellet mill has good molding effect and high hardness, density is more than 1.1*103kg/m3, durability (PDI) is good, shiny appearance, can better meet the requirements of storage and transportation;
• The box of PTO pellet mill is made of carbon structural steel, and the tensile strength (350-500MPa) is more than two times of that of the casting (160-220MPa);
• Center adjusting roll die clearance, easy to adjust, uniform force, greater power;
• Spindle torque is 2 times of the same type of die type pellet mill, more suitable for granulation of hardwood raw materials such as elm, bamboo and other materials;
• Strength of the main shaft, roller shaft and bearing are more than 2 times of the die type, and the utility model is safe and reliable.

Wide application of PTO driven pellet mill

• PTO pellet mill means POWER TAKE OFF pellet mill, as powered by tractor, it doesn’t need engine. Thus PTO pellet mill further solves the problems that the customers are unable to power pellet mill in the field.
• Raw materials PTO pellet mill process are agricultural biomass waste, which are easy to get everywhere, such as waste wood, corn, rice husk, straw, etc.
• The pressed pellets are ideal energy to heat household stove or used in industrial boilers.

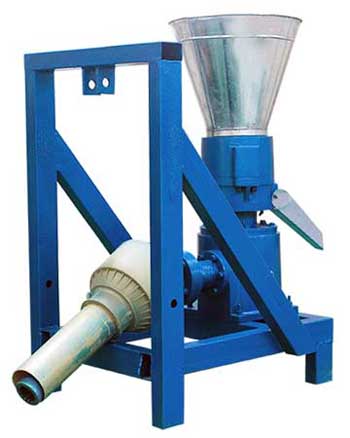

PTO pellet mill for sale

Besides new type 200 PTO wood pellet press, we already have model 150, 230, and 260 PTO pellet mill, following are main specifications of these PTO pellet mill. You can check to choose your own PTO pellet mill.

Parameters of PTO wood pellet mill:
