Crop chopper
- Model: 9RSJ-3 9RSJ-6
- Capacity: 2 tons/h - 5 tons/h
- Power: (7.5kw – 15kw)
- Application: Straw, corn silage, hay and other crops silage etc.
Go to detailed rules for FREE test Raw Materials can be Pelletized

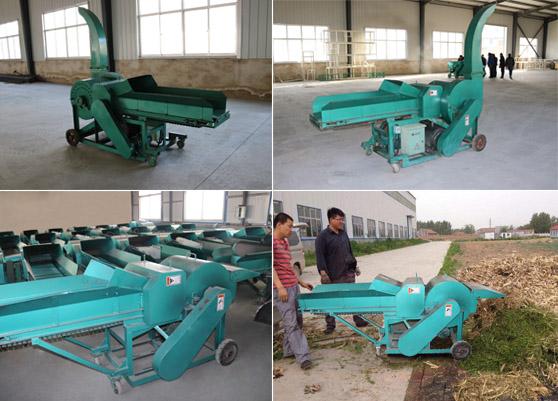

Introduction of Crop Chopper Machine
The machine is used to cut, rub and soften Straw, corn silage, hay and other crops silage. It generally consists of stand, feeding trough, squeezing part, rubbing and crushing part and power part. The machine can work in cooperation with silage baler Wrapping machine to produce high quality silage feed bundle bales.
Working Principle of Crop Chopper:
RX-9RSJ high-spray crop chopper machine adopts multi-knife cutting principle, and can make various straw, fresh straw and bark powder into ideal demand according to demand. The processing speed of straw boring machine is 6 tons per hour. With supporting power of 18KW and voltage of 380V, we have perfected the technology of the large straw sizing machine to perfect the previous deficiencies.
Components: This series of products is mainly composed of feeding bucket, frame, casing, rotor and other components. It has the characteristics of reasonable structure, convenient operation, safety and reliability, and high production efficiency.
Application of Crop Chopper Machine :
It is suitable for crop straw such as corn, wheat and grain. It can be used as a forage for cattle and sheep forage, improve the palatability of forage and improve the utilization rate of forage.
Technical Parameters of Crop Chopper Machine
| Serial number | Project | Unit | Specification | ||
|---|---|---|---|---|---|
| 1 | Specification model | / | 9RSJ-3 | 9RSJ-6 | |
| 2 | Dimensions (length * width * height) | Mm | 2350*680*1050 | 2800*900*1200 | |
| 3 | Total Weight | Kg | 280 | 600 | |
| 4 | Motor Power | Reeling machine main motor | Kw | 7.5 | 15 |
| Feed motor (reducer) | Kw | 1.5 | 1.5 | ||
| 5 | Matching motor | Rated voltage | v | 380 | 380 |
| Rated speed | r/min | 2050 | 2050 | ||
| 6 | Straw silking rate (corn stalk) | % | ≥90 | ≥90 | |
| 7 | Working efficiency (water content 55%-65%) | t/h | 3 | 6 | |
| 8 | Silk length | Mm | 20-40 | 20-40 | |
| 9 | Spray distance | m | 3-6 | 10-15 | |
Crop Chopper Machine Working Performance:
| Performance | Index | ||||
|---|---|---|---|---|---|
| Production efficiency (t/h) | Corn stalks | Cotton stalk | Straw | straw | Bark |
| 2-5 | 5-8 | 2-3 | 3-4 | 2-4 | |
| Grass distance (m) | 10-15 | ||||
Crop Chopper Straw Cutting Machine for Livestock Feed
- Crop chopper machine is used to cut, rub and soften Straw, corn silage, hay and other crops silage, to make feed for livestock.
- Crop chopper machine generally consists of stand, feeding trough, squeezing part, rubbing and crushing part and power part.
- Crop chopper machine can work in cooperation with silage baler wrapping machine, to produce high quality silage bales for long time storage.,
- Heavy duty and large capacity, suitable for individual small farms.
