  • Model: 50YP, 75YP, 15YP
  • Power: 1.5~3Kw
  • Capacity: 0~2000kg/h
  • Spiral tube length: 2.5~3m
  • Range: It is applied to convey loose material, such as powder, granules and small pieces, which is suitable for conveying various raw materials, intermediate products and finished products.
Get Price Now
Go to detailed rules for FREE test       Raw Materials can be Pelletized

Introduction of screw conveyor

If you want to set up a complete pellet plant, screw conveyor is your essential choice. In order to crush raw materials expediently, the crusher is placed in a low position to input raw materials conveniently. After crushing the raw material, there is a altitude difference with the feeding port of particle machine. If the manpower is adopted, the production efficiency will be greatly affected. At the same time, in the process of conveying, accompanied by mixing, compression, rubbing process. Equipped with a tire, screw conveyor can be flexible in the work area to move, so the screw conveyor in pellets production make whole production line flexible.

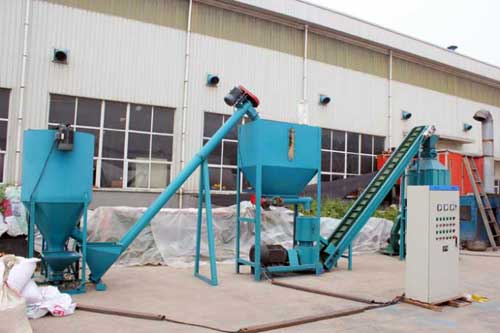

screw conveyor in pellets production

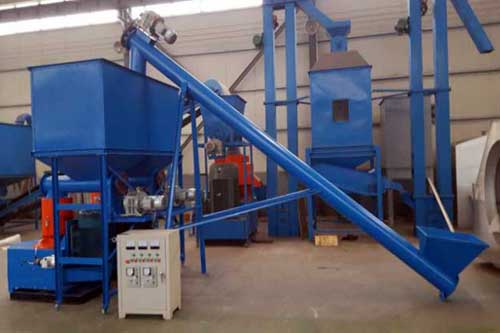

screw conveyor in pellets plant

The spiral feeder, also called screw conveyor, is the auxiliary equipment for pellet machine. It is mainly composed of the material box, the main body, the discharge port, the driving device and so on. Spiral feeder has strong bearing capacity and safety; strong adaptability, convenient installation and maintenance, long service life; small size, high speed, to ensure rapid and uniform delivery; good sealing, the shell is made of seamless steel pipe, the end flange connected to each other together, good rigidity.

Model Power(kw) Capacity(kg/h) Spiral tube length(m) N.W./G.W.(kg) Package Size(mm)
SLLX50YP 1.5 0-1000 2.5 180/220 2800*850*740
SLLX75YP 2.2 0-1500 3 250/270 3300*850*740
SLLX150YP 3 0-2000 3 310/330 3300*850*800


  • With wheels, easy to move.
  • The bracket can be disassembled, the packing size is small, so the transportation cost is low.
  • Variable frequency motor control, adjustable speed in order to control the size of the conveyor.
