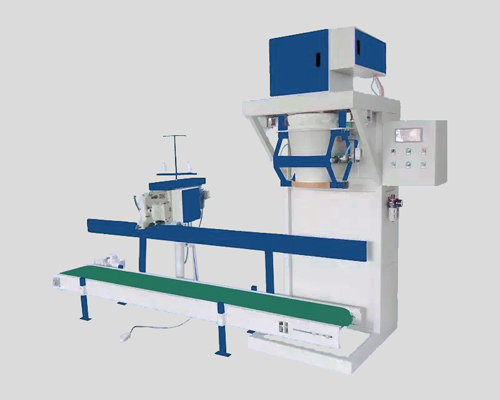

Pellet packing machine

Pellet packing machine

  • Model: DCS-Z-W-50
  • Weighing range: 5-50 kg
  • Weighing accuracy: ±0.2%
  • Weighing speed: 200—300 bags/h
  • Application: Granular materials with good fluidity
Get Price Now
Go to detailed rules for FREE test       Raw Materials can be Pelletized

What is a pellet packing machine used for?

Pellet packing machine is used to weigh wood pellets and pack them into bags. It is a common pellet processing equipment in the pellet production line.

The weighing and packing process is carried out automatically, and controlled by a computer. With high automation, the pellet packing machine can save your labor cost. It is suitable for all kinds of particle materials.

packing machine
packing machine

Features of pellet packing machine

  • It can realize pellet feeding, weighing, bagging, conveying, and sewing. It applies to woven bag, sack paper bag, cloth bag and plastic bag, etc.
  • The parts that contact with pellets are made of stainless steel 304, with high resistance to corrosion.
  • It adopts pneumatic actuator. The measuring mechanism can control the flow rate and packing speed. You can adjust them as needed.
  • It adopts high-speed sampling instrument and frequency conversion technology. They can realize automatic control, parameter setting, auto-correction. The operation interface can be connected with a computer.
  • It adopts good exhaust system and sealing technique. They can realize double seal, and prevent material leakage or impurities infiltration.
  • Beside packing pellets, it applies to various particle materials. The packing process are continuous and steady.
pellet packing machine
pellet packing machine
pellet packing machine

Specifications of pellet packing machine

TICO pellet packing machine is mainly composed of a mian scale body, a contorl system, a 3-meter conveyor, and a sewing machine, etc. It can pack 200-300 bags per hour. The weight of the bags rangs from 5kg to 50kg.

Model DCS-Z-W-50
Components Main scale body, Control system, 3-meter conveyor, sewing machine
Feed type Double speed gravity feed
Clipping way Double cylinder belt cliping
Weighing range 5-50 kg
Weighing accuracy ±0.2%
Weighing speed 200—300 bags/h
Height 222cm
Power consumption 1.0Kw
Compressed air consumption 0.4-0.6Mpa compressed air 1m^3/h
Application scope Granular materials with good fluidity
