Pellet Press with Electric Motor

Model: 120, 150, 200, 230,260, 300
Power: 3 phase, 3-22kw
Capacity: 60-800kg/h
Size of flat die: 2.5-10mm

Get Price Now
Go to detailed rules for FREE test Raw Materials can be Pelletized

Introduction of wood pellet press machine with electric motor

ZLSP flat die pellet mill is a new energy-efficient equipment which is designed and developed by our company. It realized the purpose of dry out dry in of the feed and can finish pellets once. According to the appearance, the electric pellet press has two forms, normal type(B) and with fully covered electric motor(C). The highest capacity of wood pellet machine with electric motor can up to 800kg/ h. The appearance is small and exquisite, and can easily operate. What’s more, there are pinch rollers under the electric pellet press, which can move to different places according to the working needs. In addition, there is emergency stop button, when there is something disordered, the stop button can be started to outage and stop working. There are two models of electric motor, D-type and R-type.

Rice hull, bamboo, wood shavings, sawdust, waste paper, wood sticks are all the materials of small pellet press with electric motor. Apart from these, there have many other biomass materials that can be processed by our machine, for example: Manure, hops, paper, grass, straw, wood, sawdust etc. Any material you have, we also can have a try for free!
Raw materials of electric motor pellet mill

D-type & R-type pellet press with electric motor

D-type mainly refers to rotating die type, which the roller is fixed and the flat die is rotating with the main shaft. The raw materials are generally soft wood or agricultural biomass waste, such as pine, fir, cypress, larch, basswood, corn cobs & stalks, rice straw, cotton straw, rice husk, peanut shell, bamboo powder, hemp fiber, waste paper, sunflower husk, etc. The diameter of pellets are 4,6,8,10mm.

While R-type, the rotating toller pellet mill, is on the contrary, it means the roller is rotating with the main shaft and the flat die is fixed, it is the pro version of D-type. And it specially designed for hardwood as the raw materials, such as oak, birch, cypress, elm tree, basswood, cherry, larch, maple, poplar, etc. the capacity ranges from 80-800kg/h, which makes it suitable for industrial use.

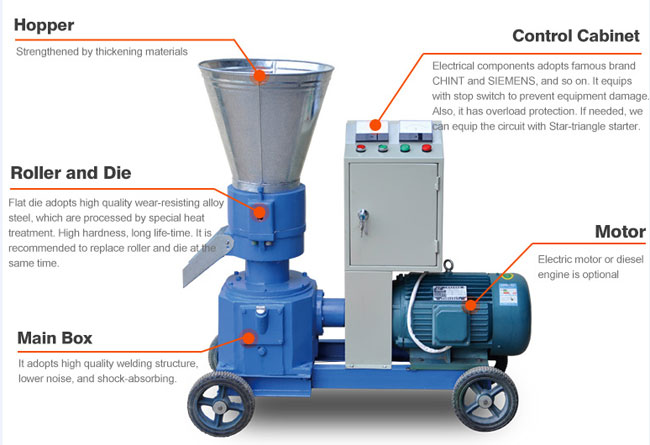

Different parts of electric motor pellet mill

Wood pellet press machine with electric motor specifications

D-type (Normal type)

Model Number	Power(kw)	Output(kg/h)	N.W./G.W.(kg)	Package Size(mm)
ZLSP150B	3phase, 5.5	50-100	95/100	800450700
ZLSP200B	3phase, 7.5	80-120	200/230	1050480930
ZLSP230B	3phase, 11	120-200	290/320	11805401000
ZLSP260B	3phase, 15	160-250	320/360	1240540950
ZLSP300B	3phase, 22	250-400	350/380	13005601100

D-type (With fully covered electric motor)

Model Number	Power(kw)	Output(kg/h)	N.W./G.W.(kg)	Package Size(mm)
ZLSP150C	3phase, 5.5	60-110	105/125	1000480780
ZLSP200C	3phase, 7.5	80-120	210/230	1050550830
ZLSP230C	3phase, 11	120-200	290/320	1200560950
ZLSP260C	3phase, 15	160-250	340/370	12405801000
ZLSP300C	3phase, 22	250-400	425/465	13006201100

R-type

Model number	Power(kw)	Output(kg/h)	N.W./G.W.(kg)	Package Size(mm)
ZLSP200B	3phase, 7.5kw	80-120kg/h	215/245kg	9504501050mm
ZLSP300B	3phase, 22kw	250-350kg/h	540/575kg	13507501400mm
ZLSP400B	3phase, 30kw	350-450kg/h	770/810kg	14008001450mm
ZLSP550B	3phase, 55kw	500-800kg/h	780/820kg	23007501850mm

ZLSP200B

Pellet press R type 300B with electric motor

ZLSP300B

Pellet press R type 400B with electric motor

ZLSP400B

Pellet press R type 550B with electric motor

ZLSP550B

Working principle of wood pellet press machine with electric motor

The electric motor pellet press is composed of roller, die, adjusting bolt, oil filter hole, round nut, locking ring, hopper, main shaft, blade, electric control cabinet etc. the electric motor makes the main shaft rotating, and there makes the friction between flat die and roller, which the temperature of friction can reach up to 80°C , then the roller compress the raw materials into the small holes of flat die, when pellets emerge on the other side of the die, the blade will cut them into the same length, thus, you can get excellent pellets.

waiting for package electric motor pellet machine

Advantages of electric motor small pellet press

All of our electric motors are with CE certification, ensuring the stable power supply. And our ZLSP series also got ISO9001 and BV.
All the spare parts are made of high quality raw materials. The most important spare parts, roller and flat dies are made from 40CR alloy steel.
The operation of electric pellet press is quite easy, suitable for the use of home and small scale industry.
It is removable benefit by the pinch rollers under the press, you can put the electric motor pellet press anywhere only there is the electricity.
The service time of this electric motor pellet press for flat die is 600h, while for roller is 800h, so the characteristic is low energy consumption and durable spare parts.
We supply 7/24 email and phone call service, and you can send us your raw materials to test freely.
