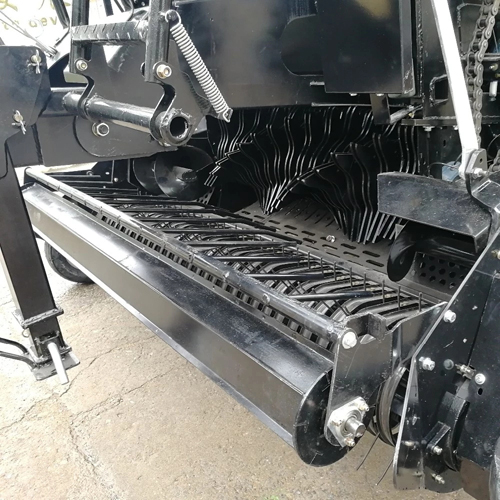

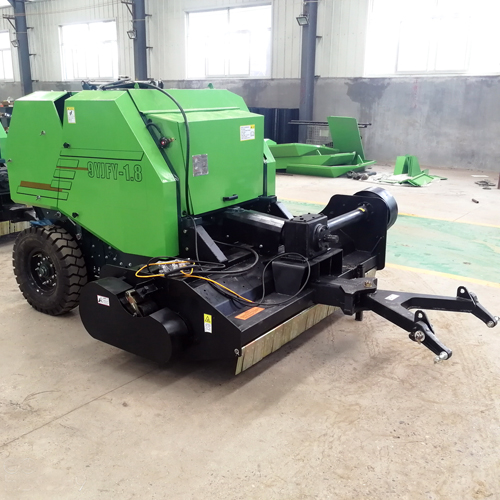

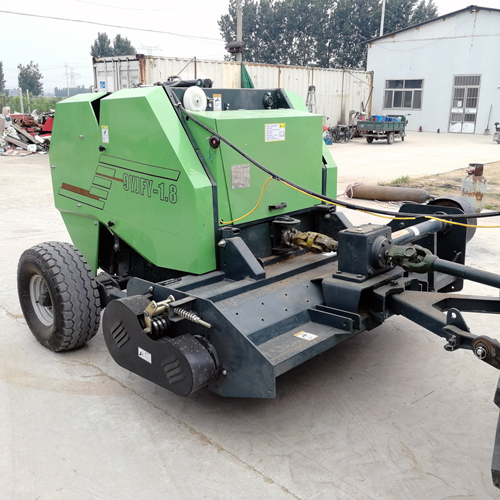

Round Baler with Cutter
- Model: YK0910F
- Capacity: 60-120 bales/hour
- Bale size: 900 X 950mm
- Weight（approx): 930kg
Go to detailed rules for FREE test Raw Materials can be Pelletized
Product Application
The straw round baler with cutter can automatically finish the cutting, bundling and put the bundle of pasture, rice, wheat and corn straw, which is widely used in dry, green grass, rice, wheat and corn.
The straws recycled by the machine can be used for paper making or straw power generation, effectively reduce or eliminate incineration phenomenon, reduce environmental pollution and improve agricultural ecological environment, which has remarkable ecological benefits.
Main Features
- 2P hitch system and 360 degree transmission gearbox design, turning radius is smaller.
- middle and centre-mounted traction system, make it easy to cross a ridge and run in the field.
- high working efficiency. large round baler is the most efficient baler in all types.
- high rate and wide tires.
- strong structure. special desigh picking up system.
- bundling bales by net.
| Model | YK0910F | YK0910FW |
| Bale size(diameter x width) | 900 X 950mm | 900 X 950mm |
| Dimensions | 2450x1850x1600mm | 3000x2200x1650mm |
| Weight（approx) | 930kg | 1550kg |
| Pickup width | 1000mm | 1800mm |
| Working speed | 2-5km/h | 2-5km/h |
| Capacity(bales/hour) | 60-120 | 60-120 |
| Weight of bale(approx) | 30-50kg | 30-50kg |
| Horsepower requirement | 40-80HP | 60-100HP |
| Package size | 2500X1800X1600mm | 1500x1800x2200mm |

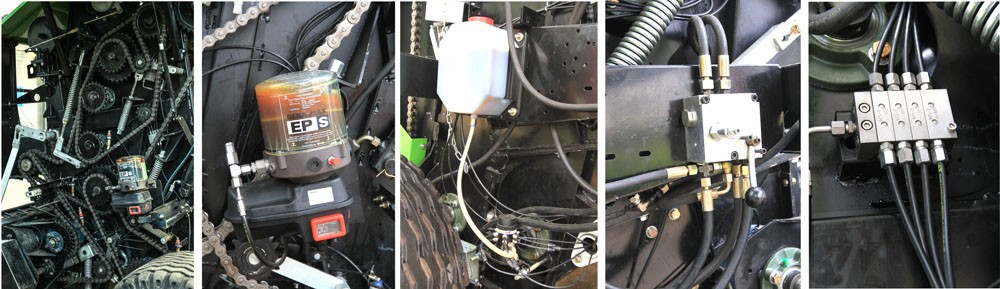

Auto oiling system imported from Germany, filling lubricant and butter into gears and bearing continues.

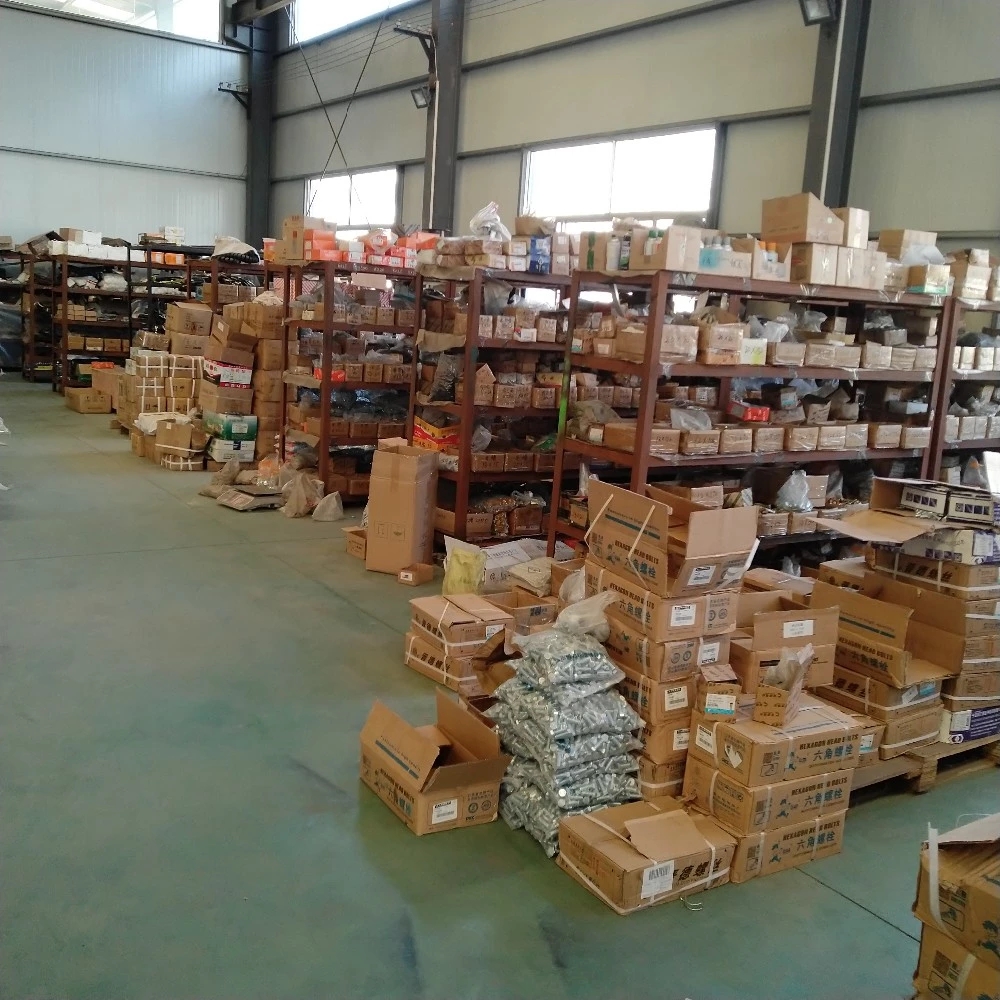

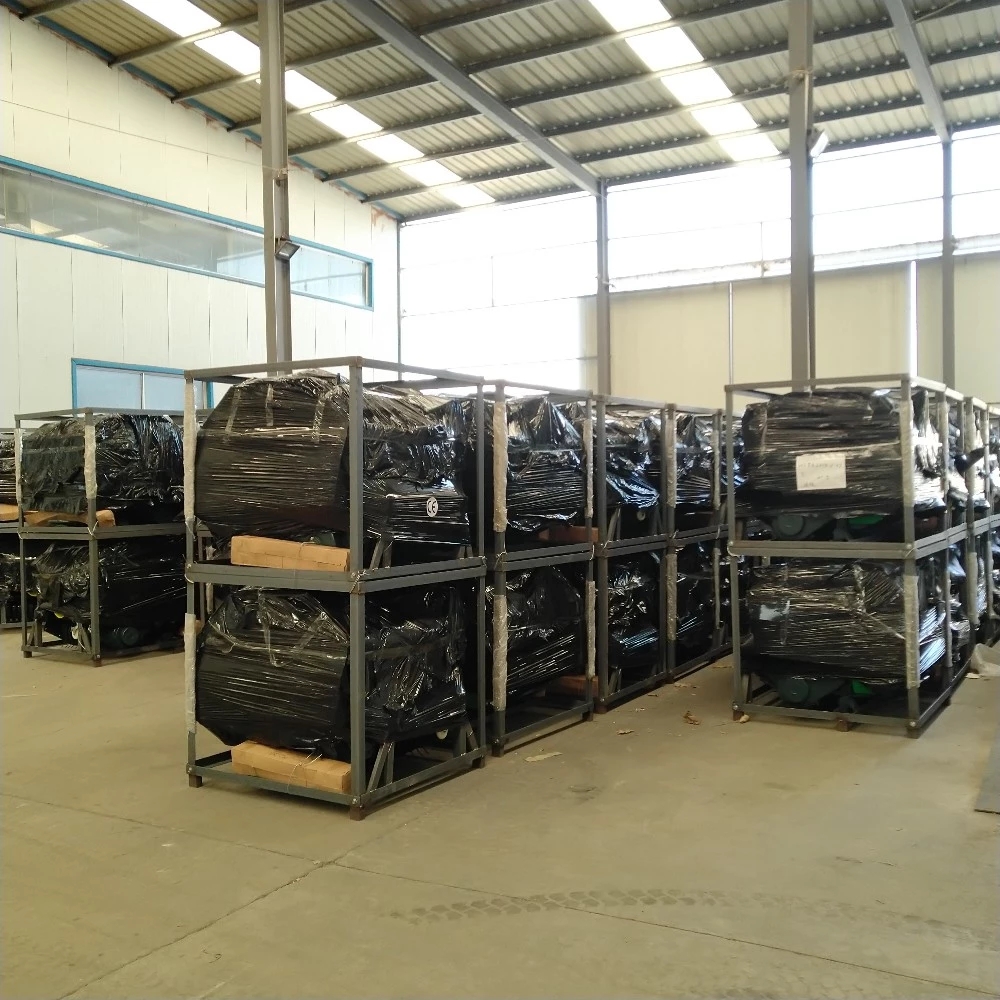

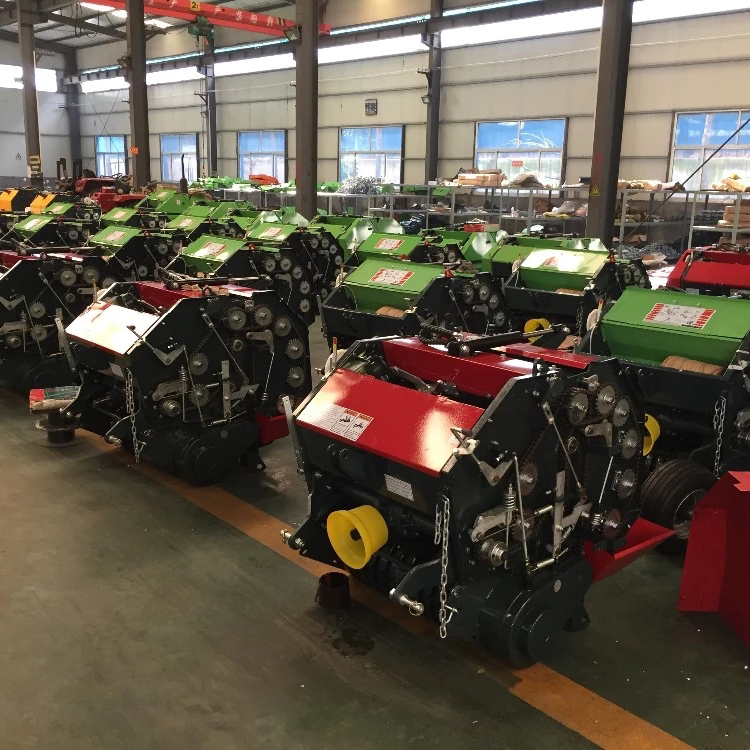

our workshop
.jpg)
.jpg)
.jpg)
