What is straw pellet mill?

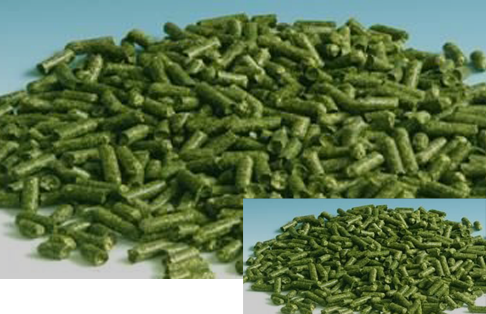

Straw is taken for a kind of agricultural waste. There are various types of straw, such as rice straw, wheat straw, corn straw, maize straw, soybean straw, and cotton straw, etc. In view of it, straw is a good resource to be taken advantage. Nowadays, customers prefer the way of reducing energy and carbon emission, so how to reduce is the problem we are facing urgently. As a result, here comes the straw pellet mill. Straw pellet mill is a kind of pellet mill that regards straw as raw materials. According to its operating, straw pellet mill changes variety of straw into straw pellets as fuel material. Those little newborn straw pellets which are more high-efficiency, energy-saving, environment-friendly than traditional fuels such as coal, gas, oil, etc. that we used before are with smooth surface, high density and uniform length.
Straw pellet mill that provided in GEMCO
Our company always devotes to biomass machinery research and development, manufacture, installation and adjustment. And this technology that takes straw as raw material is also used for most of the pellet mill in our company. Let’s focus on the pellet mil in GEMCO. We have four products that use straw as raw material in different model, capacity, pellet diameter, power and size

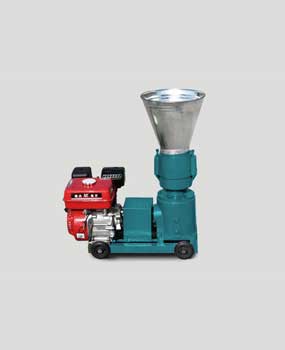

Pellet mill with gasoline. This is a kind of straw pellet mill that saves energy and manpower efficiently, operate simply and has stable process with low noise. As for the design of it, our stuff make it compact and reasonable so that straw pellets produced are uniform, hard and smooth

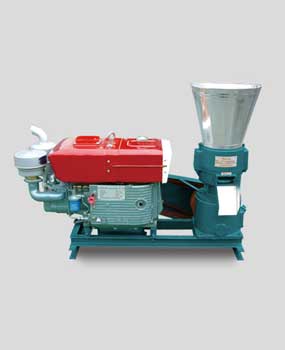

Pellet mill with diesel engine which uses diesel as the fuel of engine system. It’s safe to operate the whole system for its more reinforcing bar and thicker of the casting in order to guarantee the strength of straw pellet

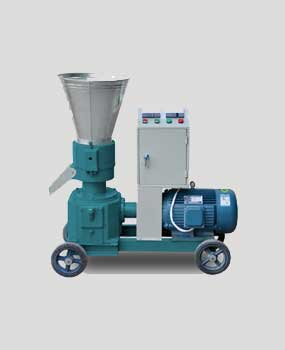

Pellet mill with electric motor. It’s a product that takes straw and some other biomass resource as raw material, suits a electric working environment is easy to operate at home or small scale industry. Because of its long service time, our pellet mill would save more energy and lengthen the spare parts for you and your factory

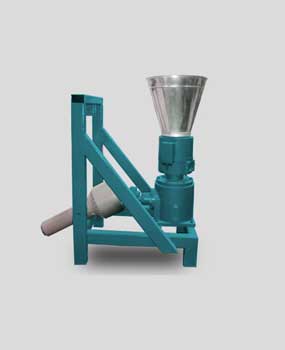

Pellet mill with PTO that you could drive it by connecting it to a tractor. Our company has the most nuclear technology in China for we are the first manufacturer who masters it. In terms of the pellet mill itself, fitting outdoor without a dedicated engine makes it more easier to install and operate. Not to mention its raw material, straw, which is hands-down
Other machine for straw pellets making
We also provide small mobile pellet plant, support machine and spare parts so that GEMCO can satisfy your different kinds of need.

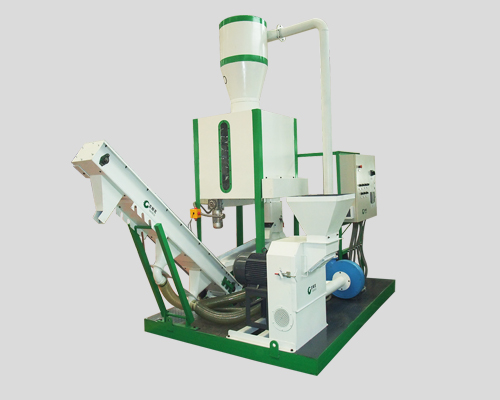

Small mobile pellet plant
Hammer mill
The benefit of straw pellet mill
- Energy saving. Our straw pellet mill uses straw as raw material that is easy to get and make good use of waste materials.
- Environment friendly. With less discharge, more cyclic utilization, pellet mill in GEMCO makes a contribution to protect the environment.
- High profit. To make the maximum profit, our straw pellet mill only costs biomass materials, less energy, less manpower, and less space.
- High quality service. We could offer you our intimate service from the time you get interested in our pellet mill till you satisfy with it and operate it expertly.
Please contact us right now, we are ready to assist you to choose the most suitable straw pellet mill for you.
| APPEARANCE | DRIVEN BY | MODEL | POWER | CAPACITY (kg/h) | WEIGHT (nw/gw) | PACKING SIZE (mm) |
|---|---|---|---|---|---|---|
 |
Electric motor | ZLSP-D 150B | 5.5kW | 50-100 | 95/110 | 800x450x700 |
| ZLSP-D 200B | 7.5 kW | 80-120 | 200/230 | 1050x480x930 | ||
| ZLSP-D 230B | 11 kW | 120-200 | 290/320 | 1180x540x1000 | ||
| ZLSP-D 260B | 15 kW | 160-250 | 320/360 | 1240x540x950 | ||
| ZLSP-D 300B | 22 kW | 250-400 | 350/380 | 1300x560x1100 | ||
 |
Electric motor with enclosure |
ZLSP-D 150C | 5.5kW | 60-110 | 105/125 | 1000x480x780 |
| ZLSP-D 200C | 7.5 kW | 80-120 | 210x230 | 1050x550x830 | ||
| ZLSP-D 230C | 11 kW | 120-200 | 290/320 | 1200x560x950 | ||
| ZLSP-D 260C | 15 kW | 160-250 | 340/370 | 1240x560x1000 | ||
| ZLSP-D 300C | 22 kW | 250-400 | 425/465 | 1300X620X1100 | ||
 |
Diesel engine | ZLSP-D 150A | 8HP | 50-100 | 180/220 | 100x500x750 |
| ZLSP-D 200A | 15 HP | 80-120 | 210/240 | 1460x750x900 | ||
| ZLSP-D 230A | 22 HP | 120-200 | 280/310 | 1560x850x1100 | ||
| ZLSP-D 260A | 30 HP | 160-250 | 330/360 | 1200x500x1070 | ||
| ZLSP-D 300A | 41 HP | 250-400 | 410-450 | 1220x600x1000 | ||
 |
Gasoline engine | ZLSP-150Q | 7.5HP | 90-120 | 180-220 | 1000x500x750 |
 |
PTO | ZLSP-D 150P | ≥8 HP | 50-100 | 90-110 | 900x540x1020 |
| ZLSP-D 200P | ≥15 HP | 80-120 | 130/150 | 1000x540x1020 | ||
| ZLSP-D 230P | ≥22 HP | 120-200 | 175/200 | 1000x540x1020 | ||
| ZLSP-D 260P | ≥33 HP | 160-250 | 235/255 | 1050x540x900 | ||
| ZLSP-D 300P | ≥41 HP | 250-400 | 305/325 | 1100x540x1000 |
| APPEARANCE | DRIVEN BY | MODEL | POWER | CAPACITY (kg/h) | WEIGHT (nw/gw) | PACKING SIZE (mm) |
|---|---|---|---|---|---|---|
 |
Electric motor | ZLSP-R 200B | 7.5kW | 80-120 | 215/245 | 950x450x1050 |
| ZLSP-R 300B | 22 kW | 250-350 | 540/575 | 1350x750x1400 | ||
| ZLSP-R 400B | 30 kW | 350-450 | 770/810 | 1400x800x1450 | ||
 ZLSP-R 420B |
37 kW | 400-600 | 700/1100/1200 | 1630*620*1400 | ||
|
ZLSP-R 550B |
55 kW | 500-800 | 1770 | 2300x750x1850 | ||
 |
Diesel engine | ZLSP-R 200A | 15HP | 80-120 | 320/350 | 1460x950x1100 |
| ZLSP-R 300A | 41 HP | 250-350 | 850/890 | 1100x700x2480 | ||
| ZLSP-R 400A | 55 HP | 350-450 | 1010/1050 | 1300x800x2600 |
-
Certificate
- China Association Of Rural Energy Industry(CAREI)
- China Flat die biomass briquetting technology standard-making group
- ISO9001 international quality system and EU CE Certification
- 10 patents on biomass briquetting and flat die pellet press
- Chinese customs class A enterprise, over 80% products for export
- High quality supplier for made-in-china.com and Alibaba
If you are interested in our straw pellets mill, please feel free to contact us at any time, we are ready to help you!
