A special type of wood pellet mill,convenient to move and place anywhere, and suitable for home and small scale production.
Portable wood pellet mill is small, light and movable, which can be placed anywhere as required. It usually adopts flat die structure, and applies to home use and small-scale production.
They are capable of processing various biomass material such as crop straw, stalk, saw dust and wood shaving. Portable wood pellet mill is popular with farm owners, ranch owners and families, which is a cost-effective choice.

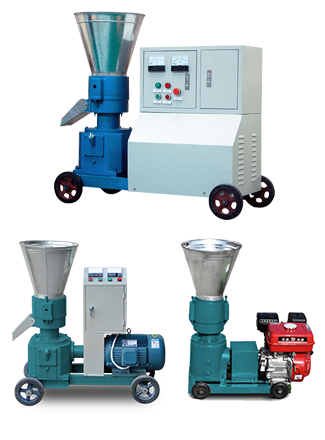

There are electric motor, diesel engine, gasoline and PTO four drive system for you to choose from. Generally, the electric type is most widely used thanks to its convenience, while diesel and PTO type is more practical in remote areas where electricity is not available.
For the past years, GEMCO portable wood pellet mills have been sold to many countries, with over 100 regular customers around the world. Reliable quality and thoughtful service has earned broad reputation for us.
Wood pellets are the most common fuel in pellet stove. They are one kind of biomass materials, products from plants and tress. Most wood pellets are made of saw dust, wood chips and other scrapes in furniture and carpentry processing. Besides, agriculture and forestry wastes are also important sources. Wood flour can be pelletized without adding additives, because there are resin and lignin playing the part.
As a substitute for fossil fuel, biomass energy plays an important role in social life. Wood pellets emerge as the time requires, finally gaining favor from people around the world. Increasing demand pushes up the price, so more and more people choose to make wood pellets with their own pellet mills. Wood pellets have such irreplaceable advantages:
- With flat die aperture from 2.5 to 10mm, and compression rate adjustable, this portable wood pellet mill is capable of processing a wide range of raw materials.
- Reliable performance, continuous output, high capacity, low failure rate, easy to operate and maintain. Attractive price, low energy consumption and maintenance cost.
- You can observe the pelletizing process clearly through the hopper. This design facilitate feeding raw materials and handling failure.
- The flat die and roller go through heat and anti-wear treatment. High durability reduce the frequency of replacement, thus saving your cost.

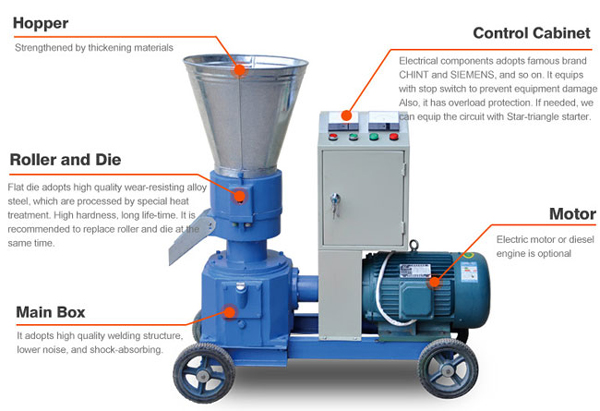

- Scientific design, compact structure, solid frame and long service life. Equipped with heavy thrust bearing, clutch and speed regulation device, which make it more practical.
Feed raw materials in a steady speed to ensure the pelletizing process is smooth. A feeder would be helpful. It can save your physical strength and facilitate pellets production.
Choose suitable flat die. The aperture of flat die depends on what raw material you are going to process. Improper die may give rise to low production and even no discharge. Consult salesmen before making decision.
Lubricate the shaft, gear and joint part from time to time. Rinse the flat die periodically to improve production efficiency.
Keep the pellet mill clean. Clear up the remnant raw materials in the chamber, and the dust and dirt on surface regularly. By doing this, you can extend the working life of portable pelletizing machine.
Adjust the clearance between roller and flat die. Proper stress is essential to making ideal pellets with perfect density and maturation. Usually there are regulator screw on both sides of the wood pellet mill. Keep them balanced and tighten.
Founded in 1997, Anyang GEMCO Energy Machinery Co, Ltd(GEMCO) is one of chinese earliest companies engaged in biomass energy machinery development. We have got many certifications all over the world.
| APPEARANCE | DRIVEN BY | MODEL | POWER | CAPACITY (kg/h) | WEIGHT (nw/gw) | PACKING SIZE (mm) |
|---|---|---|---|---|---|---|
 |
Electric motor | ZLSP-D 150B | 5.5kW | 50-100 | 95/110 | 800x450x700 |
| ZLSP-D 200B | 7.5 kW | 80-120 | 200/230 | 1050x480x930 | ||
| ZLSP-D 230B | 11 kW | 120-200 | 290/320 | 1180x540x1000 | ||
| ZLSP-D 260B | 15 kW | 160-250 | 320/360 | 1240x540x950 | ||
| ZLSP-D 300B | 22 kW | 250-400 | 350/380 | 1300x560x1100 | ||
 |
Electric motor with enclosure |
ZLSP-D 150C | 5.5kW | 60-110 | 105/125 | 1000x480x780 |
| ZLSP-D 200C | 7.5 kW | 80-120 | 210x230 | 1050x550x830 | ||
| ZLSP-D 230C | 11 kW | 120-200 | 290/320 | 1200x560x950 | ||
| ZLSP-D 260C | 15 kW | 160-250 | 340/370 | 1240x560x1000 | ||
| ZLSP-D 300C | 22 kW | 250-400 | 425/465 | 1300X620X1100 | ||
 |
Diesel engine | ZLSP-D 150A | 8HP | 50-100 | 180/220 | 100x500x750 |
| ZLSP-D 200A | 15 HP | 80-120 | 210/240 | 1460x750x900 | ||
| ZLSP-D 230A | 22 HP | 120-200 | 280/310 | 1560x850x1100 | ||
| ZLSP-D 260A | 30 HP | 160-250 | 330/360 | 1200x500x1070 | ||
| ZLSP-D 300A | 41 HP | 250-400 | 410-450 | 1220x600x1000 | ||
 |
Gasoline engine | ZLSP-150Q | 7.5HP | 90-120 | 180-220 | 1000x500x750 |
 |
PTO | ZLSP-D 150P | ≥8 HP | 50-100 | 90-110 | 900x540x1020 |
| ZLSP-D 200P | ≥15 HP | 80-120 | 130/150 | 1000x540x1020 | ||
| ZLSP-D 230P | ≥22 HP | 120-200 | 175/200 | 1000x540x1020 | ||
| ZLSP-D 260P | ≥33 HP | 160-250 | 235/255 | 1050x540x900 | ||
| ZLSP-D 300P | ≥41 HP | 250-400 | 305/325 | 1100x540x1000 |
| APPEARANCE | DRIVEN BY | MODEL | POWER | CAPACITY (kg/h) | WEIGHT (nw/gw) | PACKING SIZE (mm) |
|---|---|---|---|---|---|---|
 |
Electric motor | ZLSP-R 200B | 7.5kW | 80-120 | 215/245 | 950x450x1050 |
| ZLSP-R 300B | 22 kW | 250-350 | 540/575 | 1350x750x1400 | ||
| ZLSP-R 400B | 30 kW | 350-450 | 770/810 | 1400x800x1450 | ||
 ZLSP-R 420B |
37 kW | 400-600 | 700/1100/1200 | 1630*620*1400 | ||
|
ZLSP-R 550B |
55 kW | 500-800 | 1770 | 2300x750x1850 | ||
 |
Diesel engine | ZLSP-R 200A | 15HP | 80-120 | 320/350 | 1460x950x1100 |
| ZLSP-R 300A | 41 HP | 250-350 | 850/890 | 1100x700x2480 | ||
| ZLSP-R 400A | 55 HP | 350-450 | 1010/1050 | 1300x800x2600 |
