Corn stalk, also called as corn straw, mainly refers to the stem of a corn plant. Mainly composed by cellulose, hemicellulose and lignin. In most places, every autumn, when the corn is harvesting, there are abundance of crop residues, among which corn stalk is the most common one.
Corn stalk is the most important resource for production of agriculture and industry. There are luxuriant nutrition and abundant chemical components. For a long time, corn stalk is one of the primary raw materials of the coarse fodder.
Generally speaking, farmers are left with the dilemma of how to do deal with the abundance of corn stalk after harvesting the corn. They are usually be burned with the reason that it is thought to be less expensive to burn them than to spend the extra money to process them again. And there are adverse effects on crops with corn stalks the following year.
Corn stalks can be made into high density briquette with the help of fodder briquetting machine. The compress rate can up to 1∶15~1∶5, which can reduce the space of transportation and storage greatly. The briquette may be cross-section of 30mm by 30mm and length of 20mm to 100mm, with the density high up to 0.6t to 0.8t per cubic decimeter. This suitable for the model of company plus farmer with the low investment.
It is well known to public, biomass pellets are of many advantages compared to traditional fuel. Then why corn stalk pellets made by corn stalk pellet machine are so popular?
Corn stalk pellets are generally cheaper than other pellets. Especially for the wood pellets. In the farming areas where corn is grown, it is quite easy for you to load up the corn stalks at very low cost.
Process corn stalks into pellets can solve the energy shortage and environmental problem and can increase farmers’ income. Not only at home but also industrial factories can use corn stalks pellets.
Corn stalk is a byproduct of corn crops and not generally used after the corn is harvested, making pellet fuel from the stocks is an environmentally friendly solution for heating fuel.
Corn stalk pellets produced by GEMCO corn stalk pellet machine are seen as clean and green fuel which can be widely used at home stoves and industrial factories.

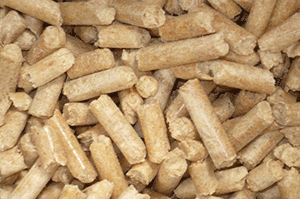

GEMCO corn stalk pellets are same in size and have uniform shapes, which makes they are easy to be stored and transported with high density, high calorific value and low cost.
The high calorific value makes corn stalk pellets easy to use, the calorific value can reach up to 3700 to 6300 calories by adding coalification agent formula.
This is proved, through testing, the sulfur content of GEMCO corn stalks pellets is 0.16% ~ 0.26%, which is far below than the coal of 1% ~ 3%.
The burning time of GEMCO corn stalks pellets can range from 2 to 4 hours or even more, which can reduce the invest cost.
- The whole driving device adopts high quality bearings to realize efficient transmission and low noise.

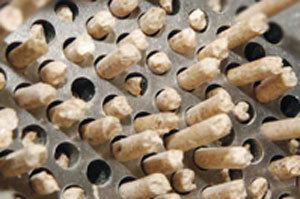

- Our flat dies can be customized with different holes, for the corn stalks, the holes range from 2mm to 10mm.
- Alloy steel made components can guarantee the stable operation with low consumptions and long service life.
- Our corn stalk pellet machine does not cost much, as long as you have enough raw materials, can save a lot of money.
- All of our corn stalk pellet machine meets CE and EU standard, and much suitable for people want to make pellets at home.
- GEMCO corn stalk pellet machine has greater yield, can produce uniform durable pellets with energy-saving.
GEMCO, a leading Chinese manufacturer of top-quality homemade flat die pellet press with different powers, as well as small mobile pellet plant, come to get them!
Workshop outside
Process of making flat dies
Our workshop

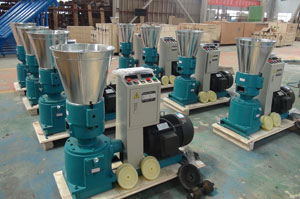

Finished pellet press for sale
Well packaged pellet presses
| APPEARANCE | DRIVEN BY | MODEL | POWER | CAPACITY (kg/h) | WEIGHT (nw/gw) | PACKING SIZE (mm) |
|---|---|---|---|---|---|---|
 |
Electric motor | ZLSP-D 150B | 5.5kW | 50-100 | 95/110 | 800x450x700 |
| ZLSP-D 200B | 7.5 kW | 80-120 | 200/230 | 1050x480x930 | ||
| ZLSP-D 230B | 11 kW | 120-200 | 290/320 | 1180x540x1000 | ||
| ZLSP-D 260B | 15 kW | 160-250 | 320/360 | 1240x540x950 | ||
| ZLSP-D 300B | 22 kW | 250-400 | 350/380 | 1300x560x1100 | ||
 |
Electric motor with enclosure |
ZLSP-D 150C | 5.5kW | 60-110 | 105/125 | 1000x480x780 |
| ZLSP-D 200C | 7.5 kW | 80-120 | 210x230 | 1050x550x830 | ||
| ZLSP-D 230C | 11 kW | 120-200 | 290/320 | 1200x560x950 | ||
| ZLSP-D 260C | 15 kW | 160-250 | 340/370 | 1240x560x1000 | ||
| ZLSP-D 300C | 22 kW | 250-400 | 425/465 | 1300X620X1100 | ||
 |
Diesel engine | ZLSP-D 150A | 8HP | 50-100 | 180/220 | 100x500x750 |
| ZLSP-D 200A | 15 HP | 80-120 | 210/240 | 1460x750x900 | ||
| ZLSP-D 230A | 22 HP | 120-200 | 280/310 | 1560x850x1100 | ||
| ZLSP-D 260A | 30 HP | 160-250 | 330/360 | 1200x500x1070 | ||
| ZLSP-D 300A | 41 HP | 250-400 | 410-450 | 1220x600x1000 | ||
 |
Gasoline engine | ZLSP-150Q | 7.5HP | 90-120 | 180-220 | 1000x500x750 |
 |
PTO | ZLSP-D 150P | ≥8 HP | 50-100 | 90-110 | 900x540x1020 |
| ZLSP-D 200P | ≥15 HP | 80-120 | 130/150 | 1000x540x1020 | ||
| ZLSP-D 230P | ≥22 HP | 120-200 | 175/200 | 1000x540x1020 | ||
| ZLSP-D 260P | ≥33 HP | 160-250 | 235/255 | 1050x540x900 | ||
| ZLSP-D 300P | ≥41 HP | 250-400 | 305/325 | 1100x540x1000 |
| APPEARANCE | DRIVEN BY | MODEL | POWER | CAPACITY (kg/h) | WEIGHT (nw/gw) | PACKING SIZE (mm) |
|---|---|---|---|---|---|---|
 |
Electric motor | ZLSP-R 200B | 7.5kW | 80-120 | 215/245 | 950x450x1050 |
| ZLSP-R 300B | 22 kW | 250-350 | 540/575 | 1350x750x1400 | ||
| ZLSP-R 400B | 30 kW | 350-450 | 770/810 | 1400x800x1450 | ||
 ZLSP-R 420B |
37 kW | 400-600 | 700/1100/1200 | 1630*620*1400 | ||
| ZLSP-R 550B |
55 kW | 500-800 | 1770 | 2300x750x1850 | ||
 |
Diesel engine | ZLSP-R 200A | 15HP | 80-120 | 320/350 | 1460x950x1100 |
| ZLSP-R 300A | 41 HP | 250-350 | 850/890 | 1100x700x2480 | ||
| ZLSP-R 400A | 55 HP | 350-450 | 1010/1050 | 1300x800x2600 |
