How much do you know about flat die pellet mill?
You may have heard flat die pellet mill, but do you know the details? This article can help you. Before detailing flat die pellet mill, let’s try to understand pellets and pellet mill more carefully.
Introduction of pellets

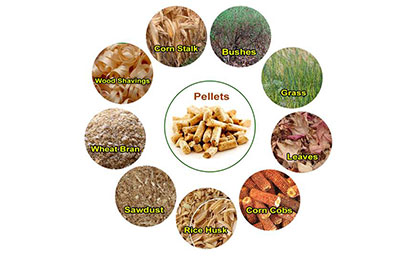

Pellets are generally used as pellet fuel, they are made from organic matter or biomass. Bushes, wood shavings, waste papers, along with dozens of other agricultural by-products and residuals capable of being used for renewing, are all examples of biomass. By engineering them, pellets can utilize millions of tons of waste and put them to work. Pellets are used in a variety of appliances, including household stoves, fireplaces, furnaces and industrial boilers. Pellets can deliver a significant reduction in net carbon emissions when compared with fossil fuels. Its production and use also brings additional environmental and social benefits.
How to make pellet fuels?
Pellet mill is precisely special machinery that has more than one type, which is used to make pellets from biomass raw materials. GEMCO flat die pellet mill is a popular type of pellet mill, it applies to all kinds of biomass raw materials and is widely used in farms, small plants, furniture factories, homes, and many other places to save cost.
Working principle of GEMCO flat die pellet mill
GEMCO flat die pellet mill is mainly composed of press roller, flat die, feeder, gear bearings and power source. Adopting vertical principle, while the machine is working normally, the biomass raw materials drops down by the its own weight into the pelletizing chamber where they are compressed between the roller and die to form pellets by going through the die holes.Generally, there are two types of GEMCO flat die pellet mills in the market, R type is called rotating roller type and D type is called rotating die type. The roller of R type is rotating with the main shaft and the flat die is fixed, while D type is on the contrary, it means the roller is fixed and the flat die is rotating with the main shaft. The two transmission modes are different, but the working principle is the same.
R type flat die pellet mill is costs more than D type because the former has smarter design. If your requirement is high and your budget is flexible, R type is suitable for you.
R type
D type
| APPEARANCE | DRIVEN BY | MODEL | POWER | CAPACITY (kg/h) | WEIGHT (nw/gw) | PACKING SIZE (mm) |
|---|---|---|---|---|---|---|
 |
Electric motor | ZLSP-D 150B | 5.5kW | 50-100 | 95/110 | 800x450x700 |
| ZLSP-D 200B | 7.5 kW | 80-120 | 200/230 | 1050x480x930 | ||
| ZLSP-D 230B | 11 kW | 120-200 | 290/320 | 1180x540x1000 | ||
| ZLSP-D 260B | 15 kW | 160-250 | 320/360 | 1240x540x950 | ||
| ZLSP-D 300B | 22 kW | 250-400 | 350/380 | 1300x560x1100 | ||
 |
Electric motor with enclosure |
ZLSP-D 150C | 5.5kW | 60-110 | 105/125 | 1000x480x780 |
| ZLSP-D 200C | 7.5 kW | 80-120 | 210x230 | 1050x550x830 | ||
| ZLSP-D 230C | 11 kW | 120-200 | 290/320 | 1200x560x950 | ||
| ZLSP-D 260C | 15 kW | 160-250 | 340/370 | 1240x560x1000 | ||
| ZLSP-D 300C | 22 kW | 250-400 | 425/465 | 1300X620X1100 | ||
 |
Diesel engine | ZLSP-D 150A | 8HP | 50-100 | 180/220 | 100x500x750 |
| ZLSP-D 200A | 15 HP | 80-120 | 210/240 | 1460x750x900 | ||
| ZLSP-D 230A | 22 HP | 120-200 | 280/310 | 1560x850x1100 | ||
| ZLSP-D 260A | 30 HP | 160-250 | 330/360 | 1200x500x1070 | ||
| ZLSP-D 300A | 41 HP | 250-400 | 410-450 | 1220x600x1000 | ||
 |
Gasoline engine | ZLSP-150Q | 7.5HP | 90-120 | 180-220 | 1000x500x750 |
 |
PTO | ZLSP-D 150P | ≥8 HP | 50-100 | 90-110 | 900x540x1020 |
| ZLSP-D 200P | ≥15 HP | 80-120 | 130/150 | 1000x540x1020 | ||
| ZLSP-D 230P | ≥22 HP | 120-200 | 175/200 | 1000x540x1020 | ||
| ZLSP-D 260P | ≥33 HP | 160-250 | 235/255 | 1050x540x900 | ||
| ZLSP-D 300P | ≥41 HP | 250-400 | 305/325 | 1100x540x1000 |
| APPEARANCE | DRIVEN BY | MODEL | POWER | CAPACITY (kg/h) | WEIGHT (nw/gw) | PACKING SIZE (mm) |
|---|---|---|---|---|---|---|
 |
Electric motor | ZLSP-R 200B | 7.5kW | 80-120 | 215/245 | 950x450x1050 |
| ZLSP-R 300B | 22 kW | 250-350 | 540/575 | 1350x750x1400 | ||
| ZLSP-R 400B | 30 kW | 350-450 | 770/810 | 1400x800x1450 | ||
 ZLSP-R 420B |
37 kW | 400-600 | 700/1100/1200 | 1630*620*1400 | ||
|
ZLSP-R 550B |
55 kW | 500-800 | 1770 | 2300x750x1850 | ||
 |
Diesel engine | ZLSP-R 200A | 15HP | 80-120 | 320/350 | 1460x950x1100 |
| ZLSP-R 300A | 41 HP | 250-350 | 850/890 | 1100x700x2480 | ||
| ZLSP-R 400A | 55 HP | 350-450 | 1010/1050 | 1300x800x2600 |
successful projects
GEMCO flat die pellet mill is sold in domestic and oversea markets.
Advantages of GEMCO flat die pellet mill
Small size, compact structure, low power consumption, low noise, easy operation.
It is convenient to be moved and easy to be cleaned.
If the die or rollers of the flat die pellet mill need to be changed in the later use, a single person can totally handle it.
It can realize the purpose of dry out dry in of the feed and can complete pelletizing itself directly without other process. The made pellets are smooth and hard.
Safe electric control system, operating system is fully in line with CE standards, and the emergency stop button can quickly shut down the machine in case of emergency.
All the spare parts are made of high quality raw materials. The most important spare parts, roller and flat dies are made from 40CR alloy steel.
Contact us
GEMCO supplies clients with high quality flat die pellet mill, which are available to be ordered at anytime. If you need flat die pellet mill, please contact with your sales representative or write to our support team.
