Introduction of GEMCO sawdust pellet mill
An old Chinese saying goes, “A workman must sharpen his tools if he is to do his work well.” Similarly, to get good sawdust pellets, the first thing to do is to use high-quality sawdust pellet mill. Of course, the price is very important when you purchase sawdust pellet mill. In view of the above-mentioned facts, today I will introduce the cost-effective sawdust pellet mill in 2017 to you, which is GEMCO sawdust pellet mill. If you want to choose to buy sawdust pellet mill, please follow me.

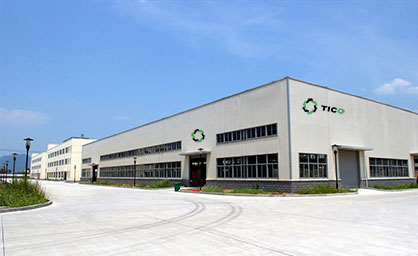

GEMCO has advanced mechanical manufacturing equipments, and it is a high-tech company with a combination of research, development, manufacturing and international trade. As one of the major products of GEMCO, GEMCO sawdust pellet mill is a manufacturing machine which can directly make biomass materials into pellet fuel. The biomass mainly includes shatters that come from miscellaneous tree, pine, bamboo, peanut shell, rice husk, straw, etc. GEMCO sawdust pellet mill adopts international advanced workmanship, which prolongs the life of equipment, improves the quality of pellet and reduces the cost.
The made pellet fuel is mainly used for heating in stove, industrial boiler and power plants. Comparing with coal, sawdust pellet fuel is an ideal recycling clean fuel, which has higher calorific value and combustion purity without phosphor and corrosive nature on boiler.
Characteristics of GEMCO sawdust pellet mill
Flat die and roller adopt high quality alloy steel, which ensure molding rate of pellets.
GEMCO sawdust pellet mill is equipped with high quality reducer, the molding of pellets is good, the output is high.
Secure electronic control system, operating systems with CE certification, the machine can be shut down quickly by emergency stop button in an emergency.
The flat die is processed by a large number of experimental data of different raw material, the result of the processing of general raw materials will be better, which compression ratio can be adjusted according to customer's requirement.
Specification of our flat die pellet mill
| APPEARANCE | DRIVEN BY | MODEL | POWER | CAPACITY (kg/h) | WEIGHT (nw/gw) | PACKING SIZE (mm) |
|---|---|---|---|---|---|---|
 |

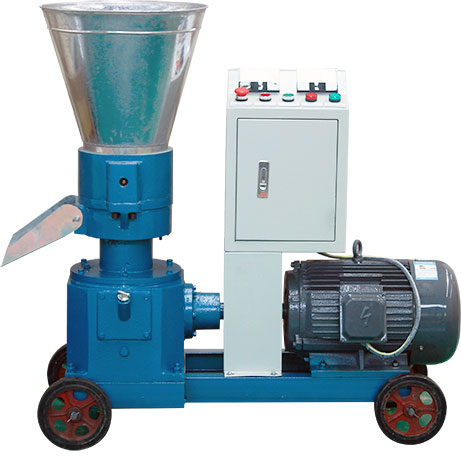

Electric motor | ZLSP-D 150B | 5.5kW | 50-100 | 95/110 | 800x450x700 |
| ZLSP-D 200B | 7.5 kW | 80-120 | 200/230 | 1050x480x930 | ||
| ZLSP-D 230B | 11 kW | 120-200 | 290/320 | 1180x540x1000 | ||
| ZLSP-D 260B | 15 kW | 160-250 | 320/360 | 1240x540x950 | ||
| ZLSP-D 300B | 22 kW | 250-400 | 350/380 | 1300x560x1100 | ||
 |

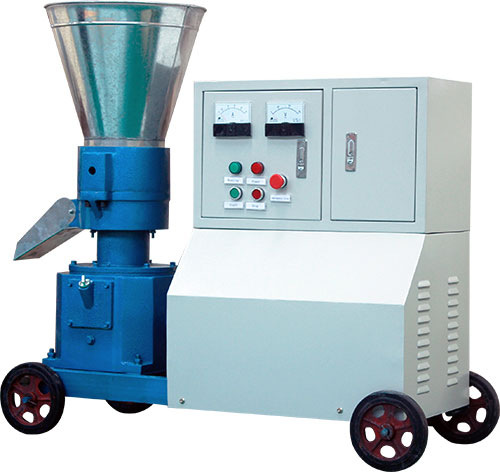

Electric motor with enclosure |
ZLSP-D 150C | 5.5kW | 60-110 | 105/125 | 1000x480x780 |
| ZLSP-D 200C | 7.5 kW | 80-120 | 210x230 | 1050x550x830 | ||
| ZLSP-D 230C | 11 kW | 120-200 | 290/320 | 1200x560x950 | ||
| ZLSP-D 260C | 15 kW | 160-250 | 340/370 | 1240x560x1000 | ||
| ZLSP-D 300C | 22 kW | 250-400 | 425/465 | 1300X620X1100 | ||
 |

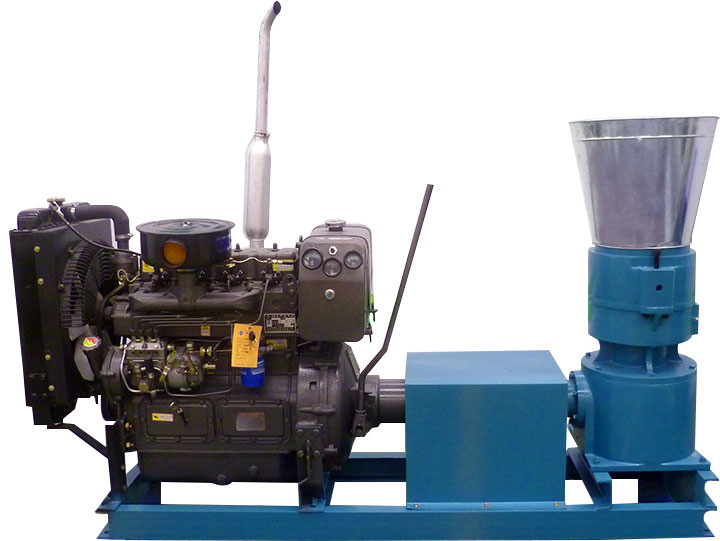

Diesel engine | ZLSP-D 150A | 8HP | 50-100 | 180/220 | 100x500x750 |
| ZLSP-D 200A | 15 HP | 80-120 | 210/240 | 1460x750x900 | ||
| ZLSP-D 230A | 22 HP | 120-200 | 280/310 | 1560x850x1100 | ||
| ZLSP-D 260A | 30 HP | 160-250 | 330/360 | 1200x500x1070 | ||
| ZLSP-D 300A | 41 HP | 250-400 | 410-450 | 1220x600x1000 | ||
 |

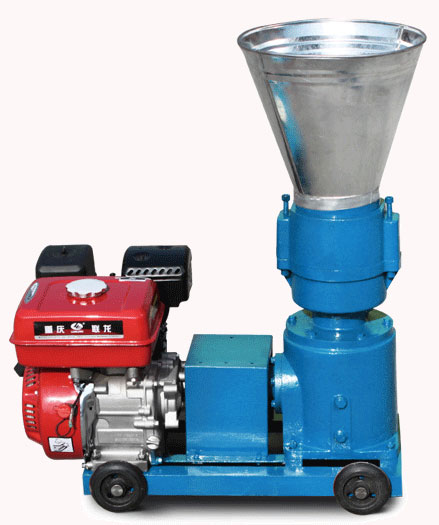

Gasoline engine | ZLSP-150Q | 7.5HP | 90-120 | 180-220 | 1000x500x750 |
 |

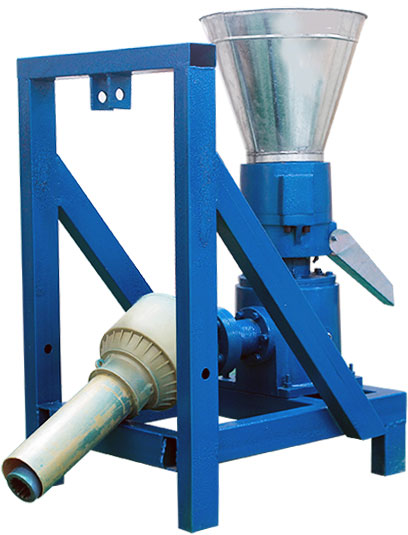

PTO | ZLSP-D 150P | ≥8 HP | 50-100 | 90-110 | 900x540x1020 |
| ZLSP-D 200P | ≥15 HP | 80-120 | 130/150 | 1000x540x1020 | ||
| ZLSP-D 230P | ≥22 HP | 120-200 | 175/200 | 1000x540x1020 | ||
| ZLSP-D 260P | ≥33 HP | 160-250 | 235/255 | 1050x540x900 | ||
| ZLSP-D 300P | ≥41 HP | 250-400 | 305/325 | 1100x540x1000 |
| APPEARANCE | DRIVEN BY | MODEL | POWER | CAPACITY (kg/h) | WEIGHT (nw/gw) | PACKING SIZE (mm) |
|---|---|---|---|---|---|---|
 |

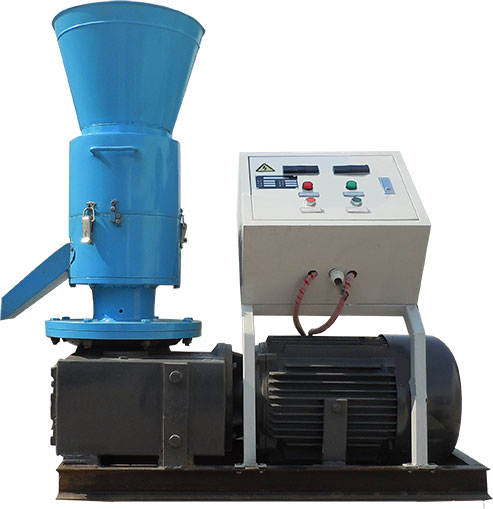

Electric motor | ZLSP-R 200B | 7.5kW | 80-120 | 215/245 | 950x450x1050 |
| ZLSP-R 300B | 22 kW | 250-350 | 540/575 | 1350x750x1400 | ||
| ZLSP-R 400B | 30 kW | 350-450 | 770/810 | 1400x800x1450 | ||
 ZLSP-R 420B |
37 kW | 400-600 | 700/1100/1200 | 1630*620*1400 | ||
|
ZLSP-R 550B |
55 kW | 500-800 | 1770 | 2300x750x1850 | ||
 |

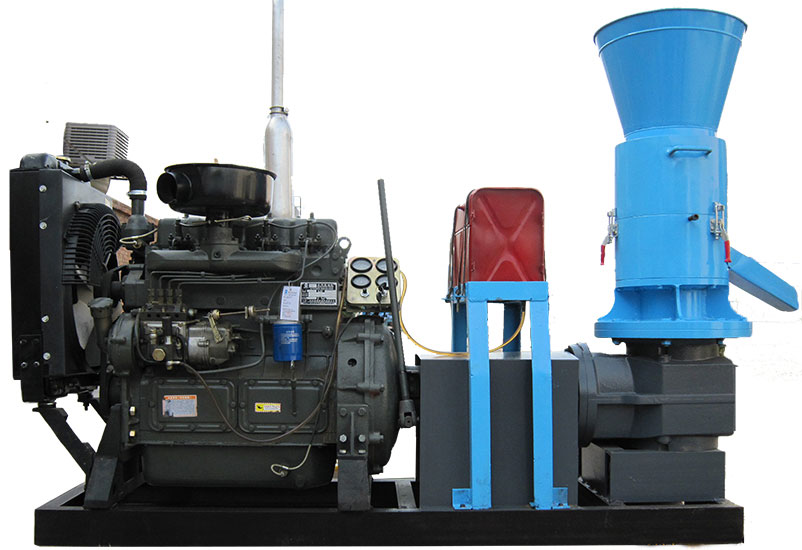

Diesel engine | ZLSP-R 200A | 15HP | 80-120 | 320/350 | 1460x950x1100 |
| ZLSP-R 300A | 41 HP | 250-350 | 850/890 | 1100x700x2480 | ||
| ZLSP-R 400A | 55 HP | 350-450 | 1010/1050 | 1300x800x2600 |
Evaluation of GEMCO sawdust pellet mill from our users
Send a quote NOW!
Reliable working function, low noise, high output, low energy consumption and high production efficiency.
GEMCO sawdust pellet mill effectively solves the problem that it is difficult to pelletize biological crude fiber, and it applies to different raw materials, the molding rate of pellets is high and the pressing effect is very good.
GEMCO has made painstaking efforts for the research, development and production, of course, what goes around comes around, now let's look at the evaluation from our customers. GEMCO sawdust pellet mill has higher cost-effective than other similar products.
It realized the purpose of dry out dry in of the sawdust and can finish pellets once.
The operation of GEMCO sawdust pellet press is quite easy, suitable for the use of home and small scale industry.
Output of particles is uniform, hard and smooth. Our investment brings the higher grain yield.
Scientific and rational design, sturdy construction, beautiful shape, small footprint and easy to use.
