What is biofuel pellet mill?
Biofuel pellet mill is a kind of biomass pellet fuel forming machine using sawdust, straw, bark, alfalfa and other agricultural and forestry waste as raw materials. Fuel pellets produced by our biofuel pellet mill have advantages of small volume, large specific gravity, combustion resistance, easy to transport and store, small sulphur content, and so on. As a kind of new type biomass fuel, the biofuel pellet can be widely used in living stove, heating furnace, hot water boilers, industrial boilers, biomass power plants and other places where fuel is needed, instead of firewood, raw coal, fuel oil, liquefied petroleum gas.
Biofuel pellet mill can help you turn waste into wealth
Firstly, utilize waste biomass materials synthetically. There are a great amount of agricultural biomass waste every year in the areas have developed agricultural and forestry, if we utilize them reasonably and scientifically, it will have a great effect. Branches and weeds cut from urban green, household waste, nut shells, and so on can all be recycled, and we can turn them into biofuel by biofuel pellet machine.
Secondly, natural mineral resources are dwindling, but our lives and social progress can not be separated from the support of energy. If we want to live as usual, if the society wants to develop healthily, development of new energy is the only way out. Because of the advantages of clean and environmental protection and the price is far lower than that of coal, biofuel pellet has a wide range of applications. With the gradual lack of energy in the world, the development of clean energy and energy conversation and emission reduction should be placed in the prominent position in the national development, thus market demand and profit margins of renewable energy like biofuel will be immeasurable.

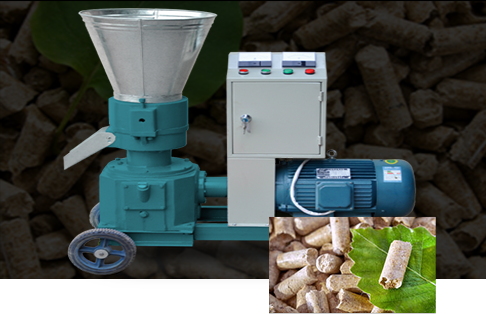

GEMCO biofuel pellet mill for sale
Integrating scientific research, development, sales and after-sale service, GEMCO has been outstanding in the R&D and manufacture of biomass energy machinery. And biofuel pellet mill is one of our representative products.
Characteristics of our biofuel pellet mill
Our biofuel pellet mill has high output, low energy consumption, low noise, low failure rate, strong fatigue resistance, continuous production, and it is economical and durable.
GEMCO pellet mill is made with quality materials and equipped with advanced gearing, key parts of the machine is made with quality alloy steel and wear-resistant material, so that the service life can be prolonged by 5-7 times.
Our biofuel pellet mill is suitable for various of raw materials, we can customize the biofuel pellet mill for you according to your different raw material and pellet requirements.
Density of the produced pellet is 1.1-1.5, the calorific value can up to 3400~4800 kcal, is a kind of high volatile solid fuel with less sulfur content.
Compact structure, beautiful appearance, large parameter of inlet and outlet, convenient operation, etc.
Adopt well-know brand reducer, surface of the produced pellet is smooth and the hardness is high.
| APPEARANCE | DRIVEN BY | MODEL | POWER | CAPACITY (kg/h) | WEIGHT (nw/gw) | PACKING SIZE (mm) |
|---|---|---|---|---|---|---|
 |
Electric motor | ZLSP-D 150B | 5.5kW | 50-100 | 95/110 | 800x450x700 |
| ZLSP-D 200B | 7.5 kW | 80-120 | 200/230 | 1050x480x930 | ||
| ZLSP-D 230B | 11 kW | 120-200 | 290/320 | 1180x540x1000 | ||
| ZLSP-D 260B | 15 kW | 160-250 | 320/360 | 1240x540x950 | ||
| ZLSP-D 300B | 22 kW | 250-400 | 350/380 | 1300x560x1100 | ||
 |
Electric motor with enclosure |
ZLSP-D 150C | 5.5kW | 60-110 | 105/125 | 1000x480x780 |
| ZLSP-D 200C | 7.5 kW | 80-120 | 210x230 | 1050x550x830 | ||
| ZLSP-D 230C | 11 kW | 120-200 | 290/320 | 1200x560x950 | ||
| ZLSP-D 260C | 15 kW | 160-250 | 340/370 | 1240x560x1000 | ||
| ZLSP-D 300C | 22 kW | 250-400 | 425/465 | 1300X620X1100 | ||
 |
Diesel engine | ZLSP-D 150A | 8HP | 50-100 | 180/220 | 100x500x750 |
| ZLSP-D 200A | 15 HP | 80-120 | 210/240 | 1460x750x900 | ||
| ZLSP-D 230A | 22 HP | 120-200 | 280/310 | 1560x850x1100 | ||
| ZLSP-D 260A | 30 HP | 160-250 | 330/360 | 1200x500x1070 | ||
| ZLSP-D 300A | 41 HP | 250-400 | 410-450 | 1220x600x1000 | ||
 |
Gasoline engine | ZLSP-150Q | 7.5HP | 90-120 | 180-220 | 1000x500x750 |
 |
PTO | ZLSP-D 150P | ≥8 HP | 50-100 | 90-110 | 900x540x1020 |
| ZLSP-D 200P | ≥15 HP | 80-120 | 130/150 | 1000x540x1020 | ||
| ZLSP-D 230P | ≥22 HP | 120-200 | 175/200 | 1000x540x1020 | ||
| ZLSP-D 260P | ≥33 HP | 160-250 | 235/255 | 1050x540x900 | ||
| ZLSP-D 300P | ≥41 HP | 250-400 | 305/325 | 1100x540x1000 |
| APPEARANCE | DRIVEN BY | MODEL | POWER | CAPACITY (kg/h) | WEIGHT (nw/gw) | PACKING SIZE (mm) |
|---|---|---|---|---|---|---|
 |
Electric motor | ZLSP-R 200B | 7.5kW | 80-120 | 215/245 | 950x450x1050 |
| ZLSP-R 300B | 22 kW | 250-350 | 540/575 | 1350x750x1400 | ||
| ZLSP-R 400B | 30 kW | 350-450 | 770/810 | 1400x800x1450 | ||
 ZLSP-R 420B |
37 kW | 400-600 | 700/1100/1200 | 1630*620*1400 | ||
|
ZLSP-R 550B |
55 kW | 500-800 | 1770 | 2300x750x1850 | ||
 |
Diesel engine | ZLSP-R 200A | 15HP | 80-120 | 320/350 | 1460x950x1100 |
| ZLSP-R 300A | 41 HP | 250-350 | 850/890 | 1100x700x2480 | ||
| ZLSP-R 400A | 55 HP | 350-450 | 1010/1050 | 1300x800x2600 |
Build your own biofuel pellet mill now!
If you have a large number of biomass raw materials, or have the need of biofuel pellets, it is your ideal choice to build your own biofuel pellet mill, which will help to turn the waste into wealth. You are welcome to send any inquires and questions to us, whatever through the phone or e-mail, our professional customer service stuff is ready to help you!
